Flat and rotary laser cutting machine JCPY-8030

Flat and rotary laser cutting machine » JCPY-8030

Pictures available of Flat and rotary laser cutting machine:

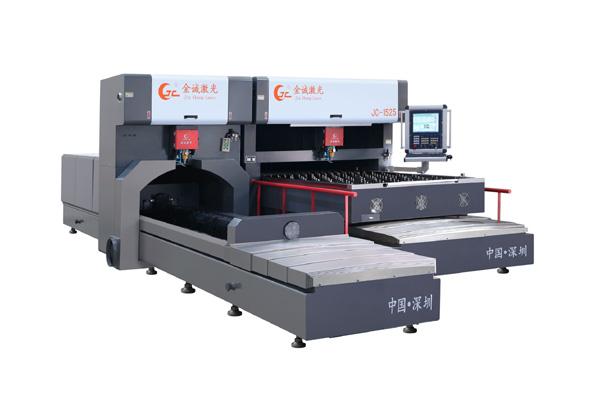

Flat and rotary laser cutting machine

Features And Functions
The structure of gantry with small size is stable and reliable.
PA laser dedicated CNC systems, lasers and machine control systems into one.
The machine equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features.
The machine uses fully-enclosed cover, the effect of removing smoke is very good,100% no smoke left in the workshop when cutting.
The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life.
The three cuting gases are free to choose. The entire system uses high pressure gas line design, when cut stainless steel plate.
Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation.
Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature deformation.
Quick marking function is optional.
Drilling router function is optional.

Enquiry Now

Flat and rotary laser cutting machine Details




Table structure

Gantry construction

Laser output power


X-axis travel-length


Y-axis travel-length


Z-axis travel-length


Cutting speed


Re-Positioning Precision


Cutting width kerf

0.45mm, 0.71mm, 1.05/1.07mm at one time (die board)

Controlling system

Germany PA

Transmission system

Ball screw & Linear guide (TAIWAN)

Driving system

Japan high-precision servo motors

Optical system


Overall dimensions(L×W×H)


G. Weight


Laser generator gas matched

He ,N2 ,CO2(99.99%)

Laser cutting thickness

Flat die board:0.1-30mm

Centrifugal blower

1 set


Flat and rotary laser cutting machine has been presented above, want more related products, please click the category below.
Category: Flat and Rotary laser cutting machine
