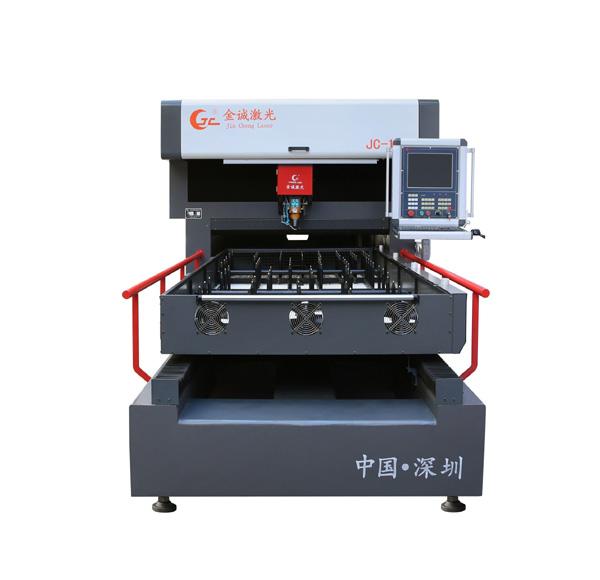

Flat Laser Cutting Machine JCDZ-A1225 1000W

Flat Laser Cutting Machine » JCDZ-A1225 1000W

Pictures available of Flat Laser Cutting Machine:

JCDZ-A1225 1000W

Flat Laser Cutting Machine

Features And Functions

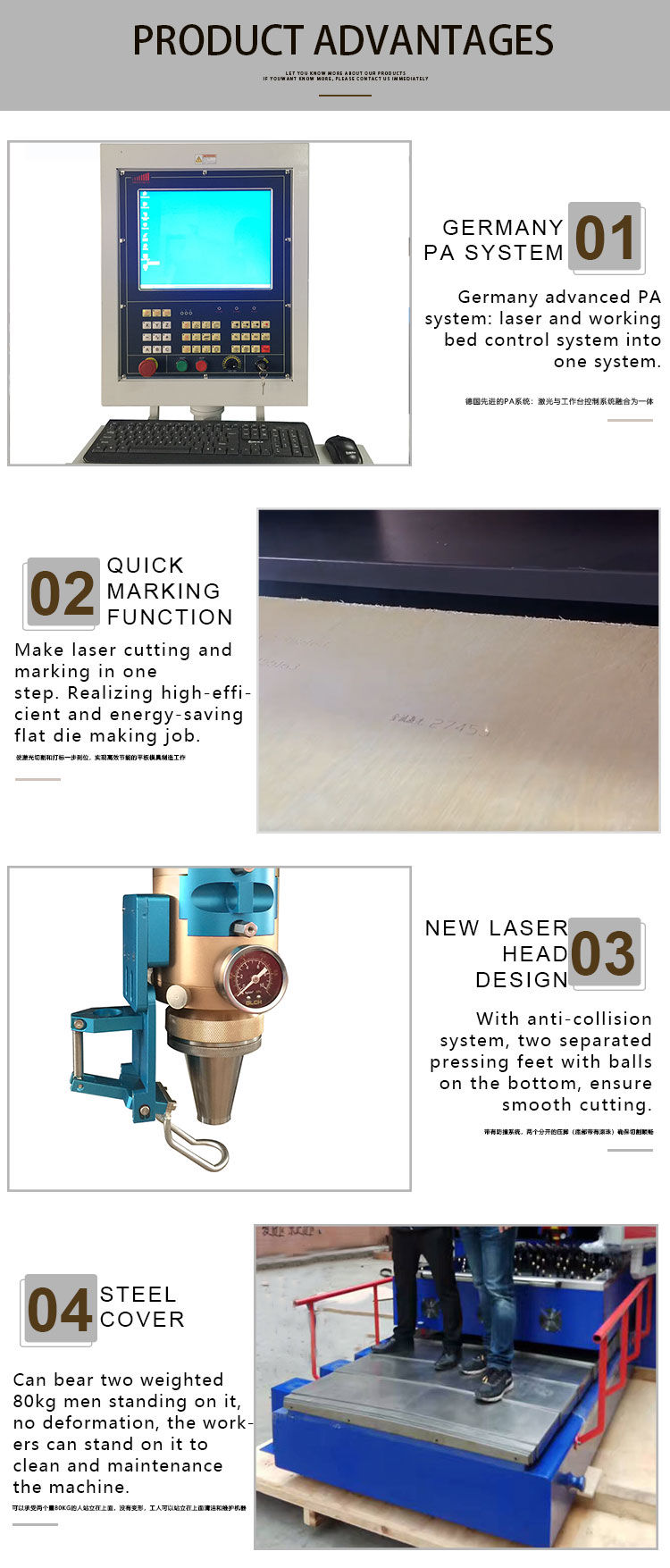

-PA laser dedicated CNC system, laser and machine control system into one.
-The machine is equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features.
-The machine uses fully-enclosed cover, the effect of removing smoke is very good,100% no smoke left in the workshop when cutting.

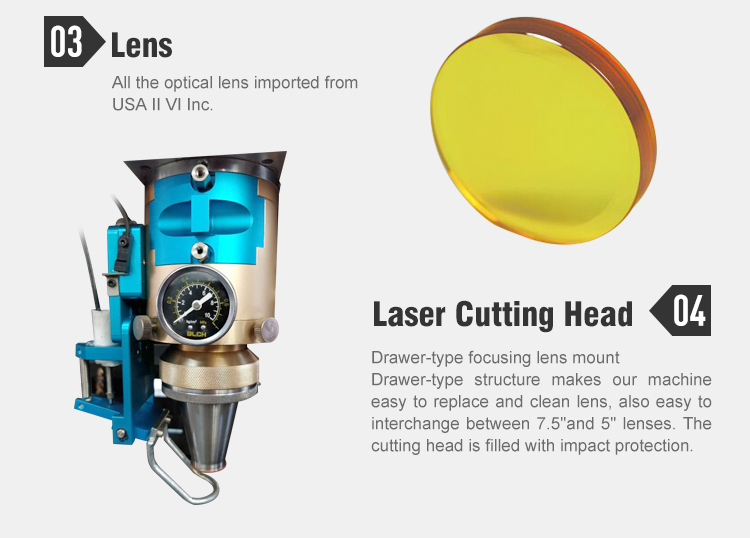

-The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life.
-Stainless steel plate cover, can bear at least two weighted 80kgs men standing on it, no deformation.
-Quick marking function is optional.
-New laser head design with anti-collision system, two separated pressing feet with balls on the bottom, make sure moving smoothly.
-Gantry type machine can individually adjust 45,90°,135 and whole X direction cutting kerf tightness.X,Y,Z axis individually control.
-Auto oiling system.
-Cutting path display.
-High energy savings: one bottle Helium gas can be used for 300 hours.

Enquiry Now

Flat Laser Cutting Machine Details



Model no
JCDZ-A1225-1500W
power
1500w
the table moving
Gantry construction
Laser output power
High power axial flow CO2 laser source
X-axis travel
1200mm
Y-axis travel
2500mm
Cutting speed
1.8-2m/min
Cutting width kerf
0.45mm, 0.71mm, 1.05/1.07mm at one time (die board)

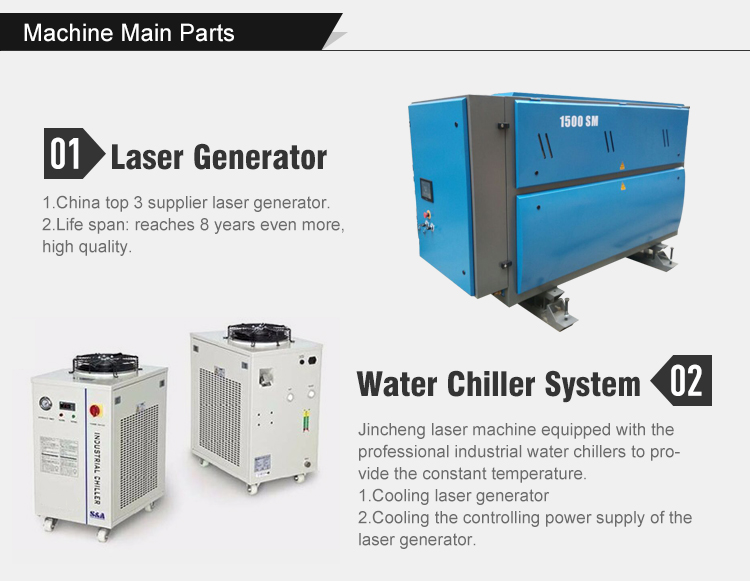

Chiller system
Made in China
Overall dimensions (L x W x H)
4800*2300*2300mm
G. Weight
4200kg
Laser generator gas matched
He, N2, CO2 (99.99%)
The maximum cutting board size
170~800*3000mm
Re-Positioning Precision
≤0.02mm
Controlling system
Germany PA
Laser cutting thickness
0.1-30mm
Centrifugal blower
1 Set
Transmission system
Ball screw & Linear guide (TAIWAN)
Driving system
Japan high-precision servo motors
Optical system
US
Moving structure
Gantry
